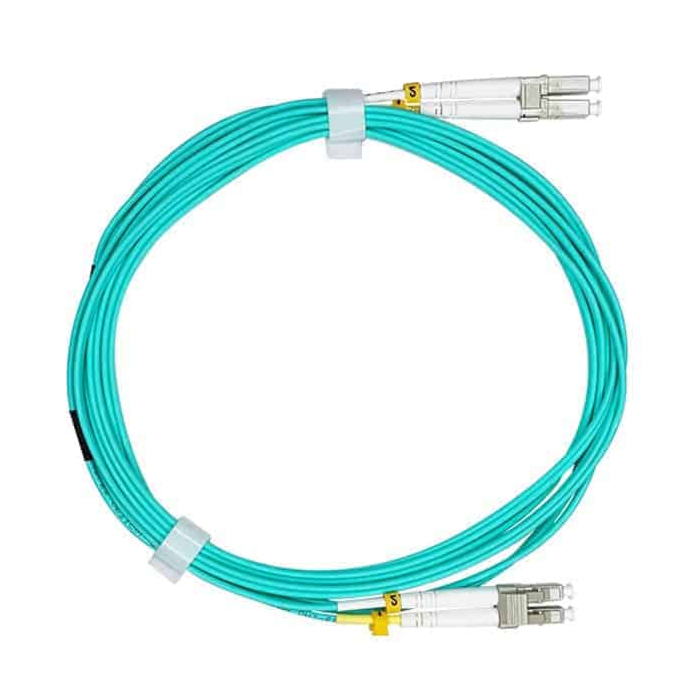

OM4 Multimode 50/125 LC to LC Duplex Fiber Optic Cable
Features
- LC to LC, OM4, (50 μm Core)
- Up To 100 GBit/s
- Insertion/Return Loss: ≤0.3dB/ ≥30dB
- Length (Meter): 1, 3, 5, 7, 10
- PVC Jacket, Multimode, Duplex
-
Secure Payment
-
Quick
Refund -
Original
Product
-
9AM to 6PM Support
-
Free Delivery Above $249
-
Quickest Delivery
Additional information
Weight | N/A |
---|---|
Dimensions | N/A |
Length by Meter: | 1 meter, 3 meter, 5 meter, 7 meter, 10 meter, 15 meter |
Fiber Mode: | 50/125 |
Polish: | PC |
Multimode: | Yes |
Duplex: | Yes |
Cable Jacket: | PVC |
Color: | Aqua |
Cable Diameter: | 2.0mm |
Tightly Buffered: | Yes |
Bandwidth: | (850nm /1300nm) (3500/500) |
Female Connector: | Yes |
Operating Temperature: | -20°C~+70°C |
Wavelength: | 850nm /1300nm |
Insertion Loss: | ≤0.3dB |
Return Loss: | ≥30dB |
Multimode 50 125 OM4 Duplex – LC LC Multimode Cable
LC to LC OM4 is a multimode patch cord that has two LC connectors at each end of the cable. LC connector is also known as Lucent Connector. It is a smaller version of the SC connector. It utilizes a 1.25mm ferrule. The Multimode 50 125 OM4 cables is designed to carry multiple rays of light within the cable each at a slightly different angle. You can use multimode cables for shorter distances because modes tend to disperse over longer distances. Fiber optics work under the principle of Total Internal Reflection. This phenomenon keeps the light inside the cable.
Newyork Cables introduces its new OM4 laser-optimized Multi-mode Fiber (LOMMF) “Aqua” cables for use with 40/100Gb Ethernet applications. These new technologies, 50/125um, LC/LC Fiber Optic cables, provide nearly ten times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Single-mode cable, at a much-reduced cost. We manufacture Multimode OM4 Cable with high-quality material.
LOMMF cable allows 40/100Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enables a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LANs, SAN’s, and high-speed parallel interconnects for head-ends, central offices, and data centers.
Multimode OM4 Fiber LC LC Multimode Cable belongs to the OM4 category. This is a laser-optimized, high bandwidth 50 microns LC-LC multimode fiber cable. This cable is called laser-optimized because we design it for optimal performance. OM4 fiber supports Ethernet, Fiber Channel, and OIF applications, allowing extended reach upwards of 550 meters at 10 Gb/s for ultra-long building backbones and medium-length campus backbones.
Many cool features come with Multimode 50 125 OM4 cable. It has an aqua color jacket. This cable is 100% optically inspected and tested for insertion loss. It is backward compatible. LC to ST patch cord has a pull-proof jacket. It is RoHS compliant. You also get immunity against electrical interference with this cable. Order Multimode OM4 Fiber LC LC Multimode Cable and get free shipping in the USA.
