Cat5e Riser Bare Copper 1000ft Ethernet UTP Cable


Price: $99.99

Availability:

Out of stock

BlueWhiteGreenRed
1000 FT
Clear
Compare

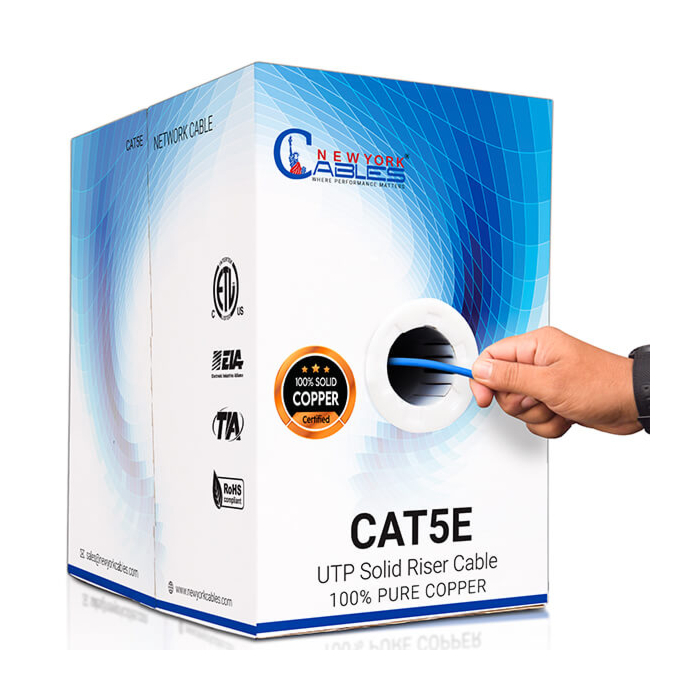

Cat5e Riser Bare Copper UTP 1000ft

At New York Cables, we have always aimed for quality. We manufacture and sell high-quality cables and their accessories at the most reasonable price points. This riser-rated category 5 enhanced blue jacket cable with bare copper conductors is a high-performance cable that conforms to all the market minimum base requirements and standards. It is a Communications Multipurpose Cable, Riser, which means that it is made in accordance with the fire standards well-defined in Article 800 of the NEC. Apart from that, it is UL listed, TIA/EIA verified, and RoHS compliant cable. It has been tested against its specifications for high data transfer speeds, bandwidth capacity, excellent attenuation, ability to cut down cross talks, high data integrity and so on. This cable is suitable to support up to 350 MHz bandwidth frequency and it has been tested to support up to 1000 Mbps gigabit speeds. It can perfectly support GbE (Gigabit Ethernet/1000Mbps) up to 100 meters.

This Cat5e riser bare copper blue cable has 24 American Gauge Wire AWG bare copper conductors, sorted out into shading coded bent sets. It is made up of 8 wires twisted together in 4 unshielded pairs. The pairs are color-coded; which means that each pair can be distinguished by its color from another in a different color. Moreover, our Cat5e riser bare copper blue cable is perfect to put down cross-talks and other electromagnetic interferences, because it contains tight twisted pairs and thick outer sheathing. Cross talks can simply be understood as a nuisance. It a phenomenon which usually occurs when a signal from one cable confuses and overlaps with a signal from another cable that is running nearby. It interferes with the quality of your transmissions and communications through the introduction of noises. Therefore, you need to look out for this undesired introduction of distortions, and for that our cable is highly recommended for it is capable to provide you with high protection against Power Sum Equal-Level Far-End Crosstalk (PS-ELFEXT), Near-End Crosstalk (NEXT) and Alien Crosstalk (AXT).

Furthermore, our Cat5e riser bare copper blue cable are cables perfect for non-plenum applications requiring high performance and quality transmissions. It is not to be installed in plenum spaces because such spaces are home to air circulations which make them sensitive to fire. Therefore, in plenum spaces, it is required to install plenum-rated cables only for they have the relevant fire ratings. A cable with riser-rated jacket does not have strict fire ratings. Riser cables are recommended for riser applications; vertical riser-rated applications, for instance, between floors with no environmental air. Our riser cables carry remarkable self-fire extinguishing characteristics, and because of that, they are ideal for vertical applications. They prevent progression of fire from one floor to another floor, and they do not burn off with harmful fumes.

CableCat5e CMR 0.50±0.01mm
Wire Gauge24 AWG
ConductorSolid Copper 0.50±0.01mm – 4 Twisted Pairs
Frequency350 MHz
Jacket & ShieldingCMR Jacket – Unshielded
Pairs4 Twisted Pairs
InsulationFEP
Installation Temp5°C to 75°C
Standard CompliancesISO/IES ROHS Compliant
Spline Separating4 pairs
ColorBlue, White, Yellow, Green, and Red
Length & Package1000 Feet 305Meter – EZ Pull Box
