Features
- LC to ST, OM3, (50 μm Core)
- Up To 100 GBit/s
- Insertion/Return Loss: ≤0.3dB/ ≥30dB
- Length (Meter): 1, 3, 5, 7, 10
- PVC Jacket, Multimode, Duplex
-
Secure Payment
-
Quick
Refund -
Original
Product
-
9AM to 6PM Support
-
Free Delivery Above $249
-
Quickest Delivery
Additional information
Weight | N/A |
---|---|
Dimensions | N/A |
Length by Meter: | 1 meter, 3 meter, 5 meter, 7 meter, 10 meter, 15 meter |
Fiber Mode: | 50/125 |
Polish: | PC |
Multimode: | Yes |
Duplex: | Yes |
Cable Jacket: | PVC |
Color: | Aqua |
Cable Diameter: | 2.0mm |
Tightly Buffered: | Yes |
Bandwidth: | (850nm /1300nm) (1500/500) |
Female Connector: | Yes |
Operating Temperature: | -20°C~+70°C |
Wavelength: | 850nm /1300nm |
Insertion Loss: | ≤0.3dB |
Return Loss: | ≥30dB |

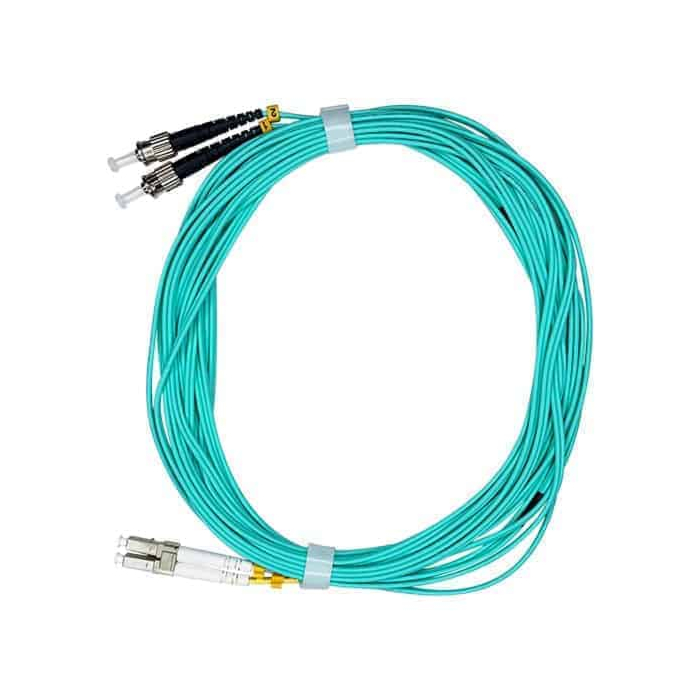

LC to ST Duplex OM3 Multimode Fiber Optic Cable
This Om3 Multimode Fiber Optic Cable features two LC connectors at one end and two male ST connectors at the other end of the cable for the fast setup. LC connectors converse space to accommodate multiple cables. You can establish high-speed data connections within your local area network using LC to ST Om3 Patch Cable. It is specifically designed for use in 10 Gigabit Ethernet network applications. This cable is backward compatible with existing network equipment and offers three times the bandwidth of traditional 62.5/125 multimode fiber.
LC to ST fiber patch cord is ideal as part of a backbone network. This Lc to St Fiber Cable uses laser-optimized fiber that has a larger diameter and greater light-gathering capacity than the single-mode fiber cable. With a core diameter of 50 microns and a cladding diameter of 125 microns, this fiber is better suited for transmitting data over short distances, such as within an office building. 10GB Multimode 50/125 LC/ST Patch Cable is classified as an Om3 Multimode Fiber Optic Cable under ISO/IEC (International Organization for Standardization / International Electrotechnical Commission) standard 11801.
LC to ST Om3 Patch Cable is a cost-effective solution. It provides high-speed 10-gigabit performance with laser-optimized multimode fiber. This is a high-quality fiber cable designed for Ethernet applications. Each connection provides great durability. It provides resistance against the pull, strains, and impact during installations. This multimode also available in Bulk Fiber Optic Cable and has a pull-proof jacket that surrounds 10G 50/125 OM3 multimode fiber which is immune to electrical interferences.
Many cool features come with Om3 Multimode Fiber Optic Cable. This cable is 100% optically inspected and tested for insertion loss. It is backward compatible. LC to ST patch cord has a pull-proof jacket. It is RoHS compliant. You also get immunity against electrical interference with this cable. Order OM3 Multimode Lc to St Fiber Cable and get free shipping in the USA.
