OM1 Multimode 62.5/125 LC to ST Duplex Fiber Optic Cable
Features
- LC to ST, OM1, (62.5 μm Core)
- Up To 10 GBit/s
- Insertion/Return Loss: ≤0.3dB/ ≥30dB
- Length (Meter): 1, 3, 5, 7, 10
- PVC Jacket, Multimode, Duplex
-
Secure Payment
-
Quick
Refund -
Original
Product
-
9AM to 6PM Support
-
Free Delivery Above $249
-
Quickest Delivery
Additional information
Weight | N/A |
---|---|
Dimensions | N/A |
Length by Meter: | 1 meter, 3 meter, 5 meter, 7 meter, 10 meter, 15 meter |
Fiber Mode: | 62.5/125 |
Polish: | PC |
Multimode: | Yes |
Duplex: | Yes |
Cable Jacket: | PVC |
Color: | Orange |
Cable Diameter: | 2.0mm |
Tightly Buffered: | Yes |
Bandwidth: | (850nm /1300nm) (200/500) |
Female Connector: | Yes |
Operating Temperature: | -20°C~+70°C |
Wavelength: | 850nm /1300nm |
Insertion Loss: | ≤0.3dB |
Return Loss: | ≥30dB |

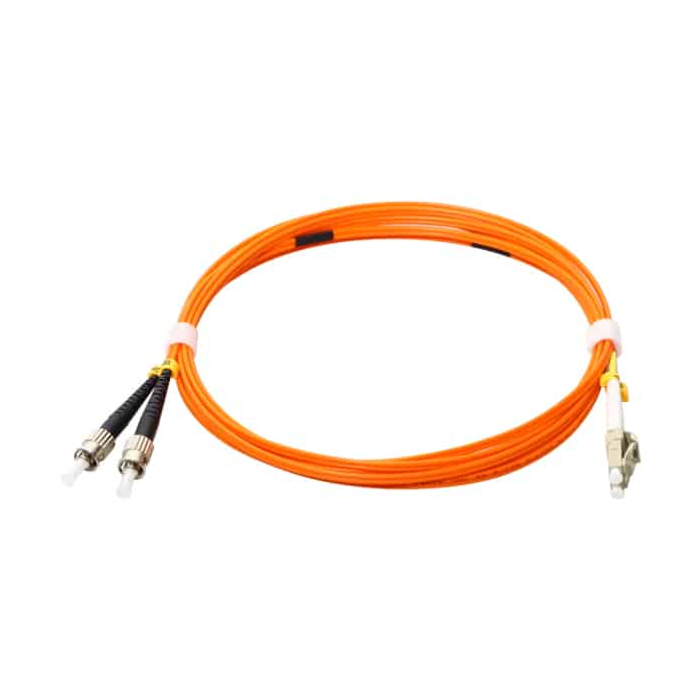

Om1 Multimode Fiber 62.5/125 Duplex – Lc to St Fiber Patch Cable
With LC to ST termination, this high-quality Om1 Multimode Fiber optic patch cable is specifically designed for ethernet, multimedia, or communication applications. In this 62.5 Mm Fiber Lc to St Fiber Patch Cable, the small LC connector takes HALF the size of traditional SC and ST fiber connectors since it offers twice the port density of conventional SC and ST connectors to satisfy the need for higher port density in telecom closets, equipment rooms, and work areas. We manufacture Lc to Sc Fiber Patch Cable multimode fiber with high-quality material.
In this Om1 Multimode Fiber Lc to St Cable, the LC connector’s RJ-style latch clip design gives each connection greater durability in resisting snagging, pulls, strains, and impacts during cabling installs and maintenance. Plus, 62.5 Mm Fiber Lc to St Fiber Cable is easy to engage and disengage with the “telephone jack style” release mechanism. The ST connector features a push-pull locking system.
The 62.5/125μm Om1 Multimode Fiber cable is suitable for fast Ethernet, Gigabit Ethernet, and fiber channel applications, such as in data center, telecom room, server farms, cloud storage networks. Each Lc to St Fiber Patch Cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 62.5 Mm Fiber, immune to electrical interference.
