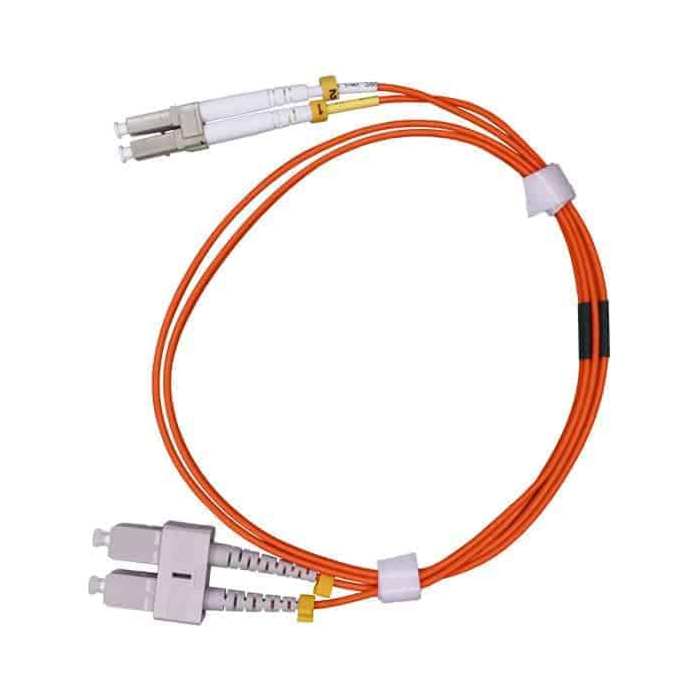

OM2 Multimode 50/125 LC to SC Duplex Fiber Optic Cable

( 0 Reviews )
Secure Payment
SKU: N/A Category:
Discount Range Price
2% Discount 10-19 $4.37
3% Discount 20-29 $4.33
4% Discount 30++ $4.28
  • LC to SC, OM2, (50 μm Core)
  • Up To 10 GBit/s
  • Insertion/Return Loss: ≤0.3dB/ ≥30dB
  • Length (Meter): 1, 3, 5, 7, 10
  • PVC Jacket, Multimode, Duplex
  • Secure Payment

  • Quick
    Refund

  • Original
    Product

  • 9AM to 5PM Support

  • Free Delivery Above $299

  • Quickest Delivery

Multimode Fiber Optic Om2 50/125 Duplex – Lc to Sc Patch Cable

Multimode Fiber Optic Om2 cable is a typical optical fiber cable that can carry multiple light rays simultaneously. Each of these light rays has a slightly different angle inside the cable. The Om2 Fiber Cable is ideal for short-distance data transfer.

Lc to Sc Patch Cable is a multi-mode cable of the OM2 category. This cable has a glass fiber of 50 diameters. The centermost part of the fiber optic is called the core. There is another optical material around the core which is known as cladding. In the OM2 category, the core to cladding diameter is 50 to 125. Multimode cables are more vulnerable to attenuation than single-mode cables. This Fiber Optic Om2 Lc to Sc Patch Cable is ideal for high-speed performance Ethernet and fiber channel applications.

This Om2 Fiber Cable is a Cost-effective solution that provides higher bandwidth and transmission rates and supports longer distances with lower loss than 62.5/125 fiber. Specifically designed for use with today’s narrower aperture components, this cable is fully compatible with multimode applications. The Low Smoke Zero Halogen (LSZH / LS0H) jacket is composed of materials that lessen the smoke and halogen emissions when the Fiber Optic Om2 cable is exposed to extreme temperatures. This reduces the amount of harmful toxic and corrosive gases that cabling made with plastic materials would otherwise emit into the air during combustion. This construction makes LSZH cables ideal for use where the protection of people and equipment from harmful corrosive gases is absolutely critical.

For Lc to Sc Patch Cable, the patch cord has two different connectors at both ends of the cable. One end has an LC connector. It’s also known as Lucent Connector. It has a ferrule of 1.25mm. The other connector is SC or Standard Connector. It utilizes a ferrule of 2.5mm. Multimode Fiber Optic Om2 cables are used to transfer data for shorter distances. It has a bigger core as compared to the single-mode cable. multiple light rays can pass through the core as the light waves. Cladding keeps the light inside the cable using total internal reflection. Order Fiber Optic Om2 Lc Sc Patch Cable and get free shipping in the USA.

Additional information

Weight N/A
Dimensions N/A
Length by Meter:

1 meter, 3 meter, 5 meter, 7 meter, 10 meter, 15 meter

Fiber Mode:

50/125

Polish:

PC

Multimode:

Yes

Duplex:

Yes

Cable Jacket:

PVC

Cable Diameter:

2.0mm

Tightly Buffered:

Yes

Bandwidth:

(850nm /1300nm) (500/500)

Female Connector:

Yes

Operating Temperature:

-20°C~+70°C

Wavelength:

850nm /1300nm

Insertion Loss:

≤0.3dB

Return Loss:

≥30dB
