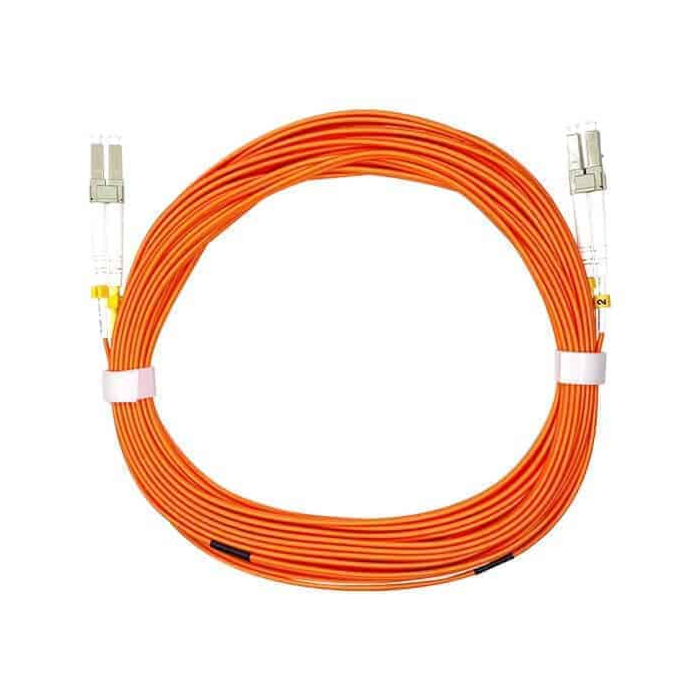

OM2 Multimode 50/125 LC to LC Duplex Fiber Optic Cable

( 0 Reviews )
Secure Payment
SKU: N/A Category:
Discount Range Price
2% Discount 7-14 $4.81
3% Discount 15-21 $4.76
4% Discount 22++ $4.71
  • LC to LC, OM2, (50 μm Core)
  • Up To 10 GBit/s
  • Insertion/Return Loss: ≤0.3dB/ ≥30dB
  • Length (Meter): 1, 3, 5, 7, 10
  • PVC Jacket, Multimode, Duplex
  • Secure Payment

  • Quick
    Refund

  • Original
    Product

  • 9AM to 5PM Support

  • Free Delivery Above $299

  • Quickest Delivery

Multimode 50/125 Duplex Om2 Fiber – Lc to Lc Fiber Cable

Multimode Fiber Cable is a typical optical fiber cable that can carry multiple light rays simultaneously. Each of these light rays has a slightly different angle inside the Om2 cable. The Multi-mode Om2 Fiber cable is ideal for short-distance data transfer. LC to LC fiber cable is a multimode cable of the OM2 category. This Multimode Fiber cable has a glass fiber of 50 diameters. The centermost part of the fiber optic is called the core. There is another optical material around the core which known as cladding. In the OM2 category, the core to cladding diameter is 50 to 125. Multi-mode cables are more vulnerable to attenuation than single-mode cables. This Lc to Lc Fiber cable is ideal for high-speed performance Ethernet and fiber channel applications.

Multimode Fiber Om2 Cable is a Cost-effective solution that provides higher bandwidth and transmission rates and supports longer distances with lower loss than 62.5/125 fiber. Specifically designed for use with today’s narrower aperture components, this Lc to Lc Fiber cable is fully compatible with multimode applications. The patented injection molding process provides each connection greater durability in resisting pulls, strains, and effects from cabling install.

Multimode Fiber Cable has two same connectors at both ends. LC connector or Lucent Connector is a miniaturized version of the SC connector. It uses a 1.25mm ferrule. Multi-mode cables are ideal to transfer data for shorter distances. It has a bigger core as compared to the single-mode cable. Multiple light rays can pass through the core as light waves. Cladding keeps the light inside the OM2 cable using total internal reflection.

Each Om2 Fiber cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 50/125 multi-mode fiber, immune to electrical interference. We manufacture high-quality LC/LC Duplex 50/125 Multi-mode OM2 cable. You can order now and get free shipping in the USA.

Additional information

Weight N/A
Dimensions N/A
Length by Meter:

1 meter, 3 meter, 5 meter, 7 meter, 10 meter, 15 meter

Fiber Mode:

50/125

Polish:

PC

Multimode:

Yes

Duplex:

Yes

Cable Jacket:

PVC

Cable Diameter:

2.0mm

Tightly Buffered:

Yes

Bandwidth:

(850nm /1300nm) (500/500)

Female Connector:

Yes

Operating Temperature:

-20°C~+70°C

Wavelength:

850nm /1300nm

Insertion Loss:

≤0.3dB

Return Loss:

≥30dB
