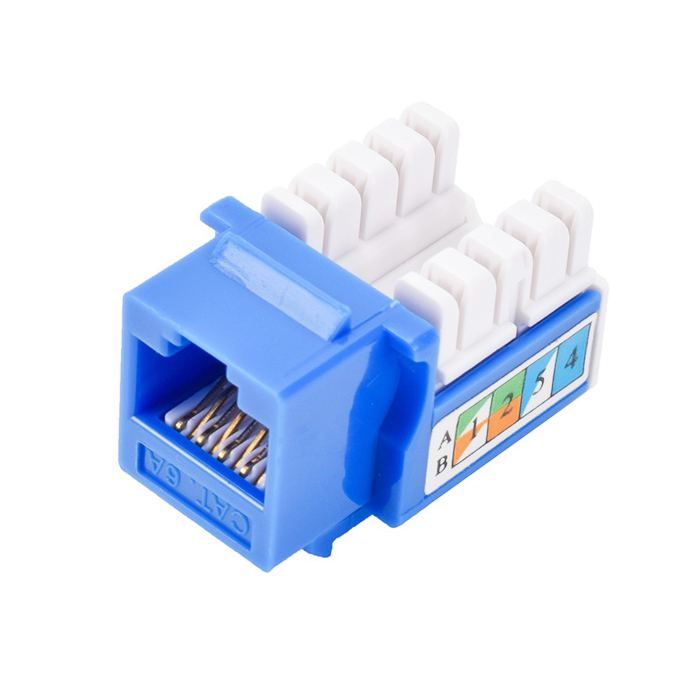

Cat6a Rj45 keystone Jack 90-Degree UTP Punch Down 110

  • SKU: N/A
  • BlueGreenRedWhiteYellow
    Secure Payment
    • RJ45 Keystone Jack 90-Degree
    • Compatible with Cat5e, Cat6
    • Pack of: 10, 25, 50
    • Bronze Contacts with 3 Microns Gold plating
    • T568 A and T568 B Wiring Config
    • Secure Payment

    • Quick
      Refund

    • Original
      Product

    • 9AM to 6PM Support

    • Free Delivery Above $249

    • Quickest Delivery

    You Can Also Buy This Deal

    Additional information

    Weight N/A
    Dimensions N/A
    Connect Resistance:

    < 20mΩ IEC 60512-2-1 Test 2a

    Input/Output Resistance:

    < 200mΩ IEC 60512-2-1 Test 2a

    Insulation Resistance:

    > 500MΩ at 100V DC IEC 60512-3-1 Test 3a

    Maximum Voltage Rating:

    >1000V DC contact to contact   >1500V DC contact to screen

    Mating Cycles:

    >1000

    Operating Temperature:

    – 40 to + 70°C

    Current Capacity:

    <0.175 mA per conductor

    Operating voltage:

    <72V DC

    Power Capacity:

    <30W

    Vibration Performance:

    < 10µs (3 axis) IEC 60512-4-1 test 2a

    IDC Connection:

    Bronze + Gold plating / Cu + SnPb 80µ

    Conductor Size:

    26 to 22 AWG

    Contacts:

    Bronze + 6 Microns Gold plating / Ni + Au 1.2µm

    Connector Body:

    ABS or PC UL94V0

    Color code:

    T568 A or B

    Color:

    Blue, Green, Red, White, Yellow

    Pack of Pcs:

    10 Pcs, 25 Pcs, 50 Pcs

    Cat6a Rj45 90-Degree Punch Down 110 UTP Keystone Jack:

    Our cat6a Rj45 keystone jack UTP (Unshielded Twisted Pair) 90-degree punch down 110 is highly recommended for a stable connection. Cat6a RJ45 keystone jack makes sure that users have a unique and smooth experience of data transfer. This female connector provides a stable connection by automatic production line. To attain the maximum performance level, we have made sure that this keystone jack meets the augmented category 6 transmission area.

    Our cat6a keystone jack will live up to its expectations whether it is installed in a home network or it is being used in a giant data center where it is pushed to its maximum limits. This keystone jack meets or exceeds the industry standards TIA/EIA 568A and 568B. It has easy color coding and quick identification. This keystone jack comes with a punch down mechanism that most of the networks use these days. Category 6a keystone jack is compatible with previous categories as well like cat6 and cat5e cables.

    Cat6a Rj45 UTP keystone jack

    This cat6a Rj45 UTP keystone jack supports Gigabit Ethernet speed with complete data integrity. It is compatible with both 568A and 568B wiring schemes and it has 110 punch down. Cat6a keystone UTP jack is specially designed for 23 AWG to 26 AWG standard and solid wires. It has an easy snap-in and snaps out of the patch panel mechanism. It complies with RoHS as well. This is a gold-plated keystone jack with a maximum insertion force of 20N. The retention strength of this keystone jack is 7.7KG between jack and plug. The operating temperature of this keystone jack is -10 degrees to 60 degrees.
