CAT6A Riser Shielded (F/UTP) 23AWG Solid-Bare Copper CMR Jacket 1000ft Spool UL Listed

×

Get A Free Quotation




















In stock

Secure Online Payments.
Quick Refund.
100% Original Products.
Customer Support (9AM to 6PM).
Maximum delivery time 1 to 4 days in USA.
Free Delivery on minimum purchase of $99

Secure Payment

SKU: NYC-V688 Category:

Additional information

Rated Temperature:

20~75 ºC

Rated Voltage:

30V

NVP:

74%

Conductor:

Annealed Bare Copper

Size:

23 AWG

Diameter (±.01mm):

0.022” (0.56mm)

Insulation:

Three Pairs with HDPE and One pair with Foam PE

Separator:

LDPE

Rip Cord:

Yes

Overall Screen:

PET Tape and Aluminium poly laminate

Outer Jacket:

PVC

Nominal Diameter:

0.29” (7.3+/- 0.4 mm)

Nominal Thickness:

0.02” (0.5+/-0.1mm)

Standards:

ISO11801 & TIA- 568-C.2, UL Subject to 444

Marking on Jacket:

c(ETL)us 5006092 CMR 75C F/UTP 4PR 23AWG CAT6A
ANSI/TIA-568-C.2 RoHS

Maximum Pulling Force:

100 N

Minimum Bending Radius:

8*OD

Nominal Weight:

55 KG/KM

Operating Temperature:

-20Deg C ~ +75 Deg C

Installation Temperature:

+0Deg C ~ +50 Deg C

Fire Performance:

ROHS, IEC60332-1,CMR Rate

Testing requirement:

Pass fluke link 295FT (90meter) testing based on ANSI/TIA 568C.2 CAT6A standard

UL Listed CAT6A Riser Shielded (F/UTP) 23AWG Solid-Bare Copper CMR Jacket 1000ft Spool

The Cat6a Riser CMR UL-Listed cable comes is designed for installation in the riser or vertical spaces of the buildings. The outer jacket carries CMR-rated marking which means the jacket has been made from fine-quality material that gives it fire-retardant properties. The cable halts fire progression.

As Cat6a Riser CMR UL-Listed has UL-Listed certification, it means that this ethernet cable has undergone extensive testing for widely expected safety standards for the ethernet cables. It has also passed assed fluke link 295FT (90meter) testing based on ANSI/TIA 568C.2 CAT6A standards. This Cat6a Riser Solid UL-Listed supports all Cat6a applications such as Ethernet 10 Gigabit, 100BASETX, 100BASEVG ANY LAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, and AES 51, RS-422.

Cat6a Riser CMR UL-Listed cable runs 23AWG and supports data transfer rates of 10 Gbps over a distance of 100 meters. This cable has 750MHz bandwidth capacity that is way more than existing industry standards for this category of cable. Cat6a Riser Solid UL-Listed cable carries the following marking on its outer jackets: c(ETL)us 5006092 CMR 75C F/UTP 4PR 23AWG CAT6A.

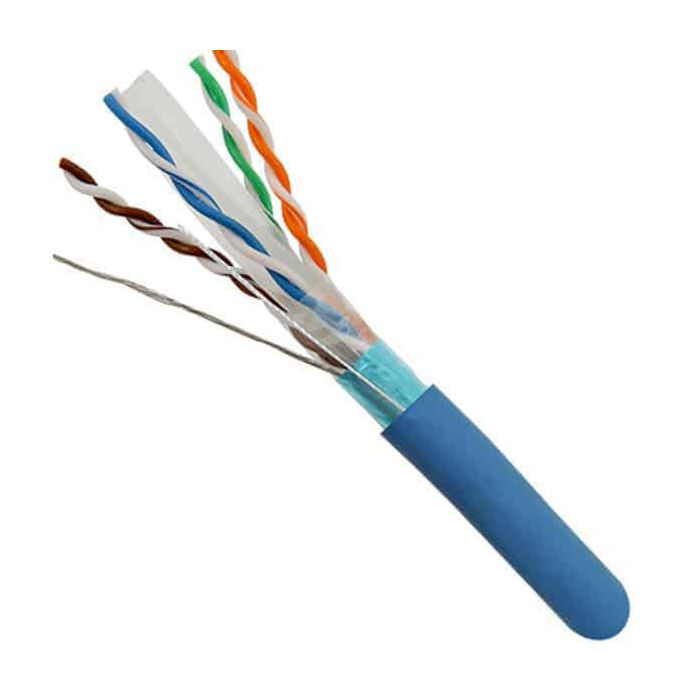

The inner structure consists of 8 pure copper conductors that are tightly bundled together in 4 twisted pairs. The biggest advantage of bare copper conductors is that they have way less attenuation as compared to CCA (copper-clad aluminum) conductors and perform exceptionally well even in harsh environments. Speaking of harsh environments, Cat6a Riser CMR UL-Listed F/UTP cable comes with an extra layer of protection in the form of an aluminum foil shield wrapped around all four twisted pairs. This extra shield provides maximum protection against all types of crosstalk and prevents electromagnetic interference.

You can also use Cat6a Riser Solid UL-Listed cable for riser and outdoor installations. Being a bulk cable, it comes in an easy-to-pull wood spool. We offer free shipping across the USA on orders worth $100 and above.
