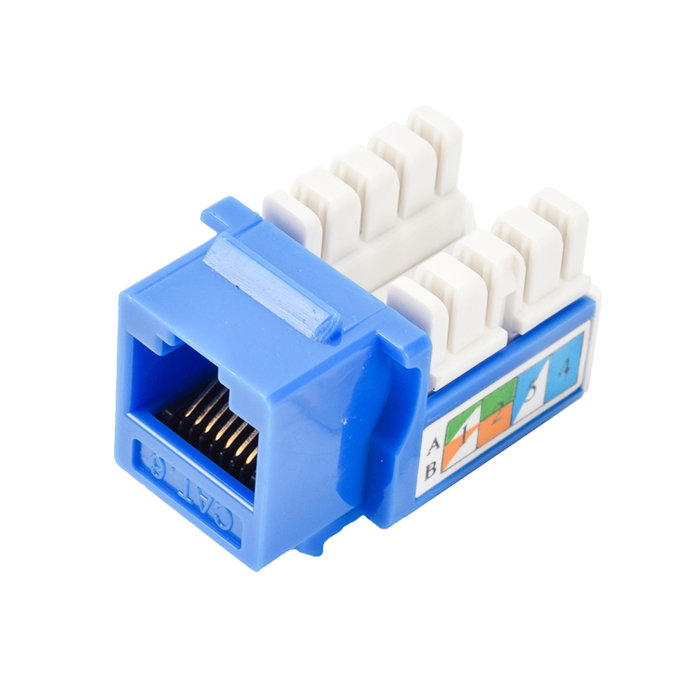

Cat6 Keystone Jacks Rj45 90-Degree UTP 110 Punch Down

( 2 Reviews )
Secure Payment
SKU: N/A Category:
Discount Range Price
2% Discount 10-19 $15.19
3% Discount 20-39 $15.04
4% Discount 40++ $14.88
  • Keystone Jack RJ45 90-Degree UTP 110 Punch Down
  • 23/24 AWG, Compatible with Cat5e, Cat6
  • Pack of: 5, 10, 25
  • Contacts: Bronze + 6 Microns Gold plating / Ni + Au 1.2µm
  • Complies with T568 A and T568 B Wiring Config
  • Secure Payment

  • Quick

  • Original

  • 9AM to 6PM Support

  • Free Delivery Above $249

  • Quickest Delivery

Cat6 Keystone Jacks Rj45 90-Degree UTP:

Cat6 keystone jacks rj45 90-degree UTP punch down 110 is designed for easy installations and reliable connections. This category 6 jack is compatible with ethernet outlets, patch panels, surface mounting boxes, and other RJ45 network outlets. Not only cat6 rj45 keystone jack provides stable connection but also it runs a transmission line automatically. We have made sure this keystone jack meets or exceeds category 6 characteristics.

This Cat6 keystone jacks rj45 90-degree UTP is used for home networks and sturdy connections. Whether it is installed in a home network or a big data center, this keystone jack offers the maximum performance. It has a quick identification as it comes with color codes. This is a gold-plated keystone jack which is TIA/EIA verified and RoHS compliant. Since the cat6 keystone jack has a punch down mechanism, it is compatible with most of the networks in use these days. It is also compatible with previous categories including cat5e.

Cat6 keystone jacks rj45 90-degree UTP supports both 568-A and 568-B wiring scheme. The color-coding makes the installation super easy. Our cat6 rj45 keystone jack can support both 23 and 24 AWG wiring. It comes with a snap-in retaining clip that ensures a secure and corrosion-free connection. Category 6 rated performance up to Gigabit Ethernet speeds for a fast and reliable network. The installation temperature is between the -40 degrees to 70 degrees Celsius. The maximum insertion force of this keystone jack is 20N. The retention strength is 7.7KG between jack and plug.

Additional information

Weight N/A
Dimensions N/A
Pack of Pcs:

10 Pcs, 25 Pcs, 50 Pcs


Blue, Green, Red

Connect Resistance:

< 20mΩ IEC 60512-2-1 Test 2a

Input/Output Resistance:

< 200m? IEC 60512-2-1 Test 2a

Insulation Resistance:

> 500MΩ at 100V DC IEC 60512-3-1 Test 3a

Maximum Voltage Rating:

>1000V DC contact to contact (IEC 60512-4-1 Test 4a Method A)

Mating Cycles:


Operating Temperature:

– 40 to + 70°C

Current Capacity:

<0.175 mA per conductor

Operating voltage:

<72V DC

Power Capacity:


Vibration Performance:

< 10µs (3 axis) IEC 60512-4-1 test 2a

IDC Connection:

Bronze + Gold plating / Cu + SnPb 80µ

Conductor Size:

22, 23 and 24 AWG


Bronze + 6 Microns Gold plating / Ni + Au 1.2µm

Connector Body:

ABS or PC UL94V0

Color code:

T568 A or B
