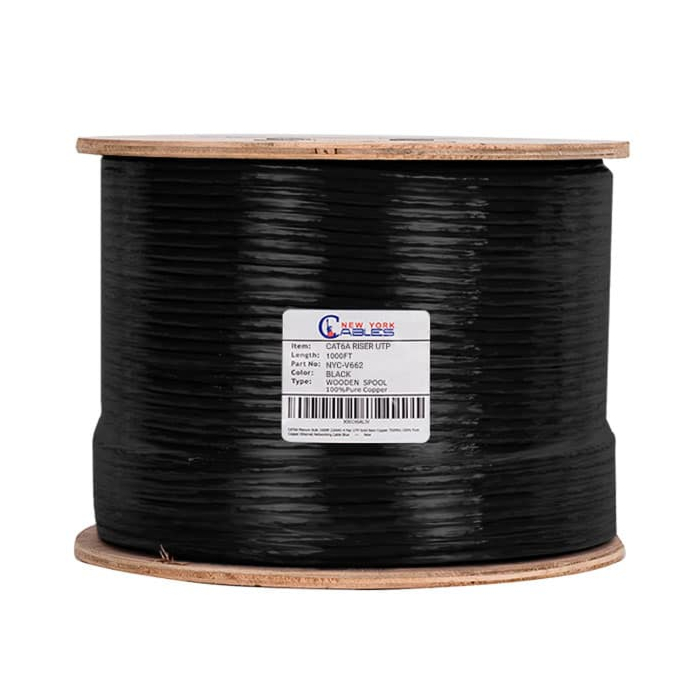

CAT6A Riser UTP 23AWG Solid Bare Copper 1000ft Spool ETL Listed

  • SKU: NYC-V662
  • Available on backorder

    SKU: NYC-V662 Category:
    • 4 Pair, UTP, 23 AWG
    • 100% Solid Bare Copper Conductors
    • Up To 10 GBit/s, 750 MHz
    • Communications Multipurpose Riser (CMR)
    • UL-Listed, ETL Verified, TIA/EIA568-C.2 Compliant
    • Certified: FCC, CE, CSA, ISO/IES, RoHS
    • Secure Payment

    • Quick
      Refund

    • Original
      Product

    • 9AM to 6PM Support

    • Free Delivery Above $249

    • Quickest Delivery

    Additional information

    Color:

    Black

    Rated Temperature:

    70°C

    Rated Voltage :

    30V

    Product Standard Certification:

    CMR

    NVP:

    69%

    Conductor:

    Solid Bare Copper

    Size:

    23 AWG

    Diameter:

    0.023 in (0.585 mm)

    Insulation:

    PE

    Insulation Diameter:

    0.044 in (1.12 ±0.005 mm)

    Twisted Pair Diameter:

    0.088 in (2.24 ±0.01 mm)

    Separator:

    LDPE

    Assembly Diameter:

    0.256 in (6.50 mm)

    Jacket:

    PVC

    Average Thickness:

    0.023 in (0.60 mm)

    Min. Point Thickness:

    0.019 in (0.50 mm)

    Outer Diameter:

    0.31 in (8.00 ±0.10mm)

    Rip Cord:

    Yes

    Test Object:

    Jacket

    Test Material:

    PVC

    Before Tensile Strength (Mpa):

    ≥13.8

    Aging Condition (ºCxhrs):

    100×168

    After Tensile Strength (Mpa):

    ≥85% of unaged

    Aging Elongation (%):

    ≥50% of unaged

    Cold Bend (-20±2º Cx4hrs):

    No Crack

    Marking on Jacket:

    cETLus VERIFIED CMR UTP 4PR 23AWG 10GS
    AUGMENTED CAT6A TIA/EIA-568-C.2 RoHS

    ETL Listed CAT6A Riser UTP 23AWG Solid Bare Copper 1000ft Spool

    This black Cat6a Riser UTP ETL Listed ethernet cable provides a data transfer speed of 10 Gbps over a distance of 100 meters. It comes with a bandwidth capacity of 750 MHz that is way more than industry standards for this category of cables.

    Cat6a Riser UTP ETL Listed cable has been designed for installation in the riser or vertical spaces of the buildings. You can use it for outdoor installations, too. The jacket has been made from fine-quality material that gives it fire-retardant properties. This cable halts fire progression and emits very low smoke (if it comes in contact with blaze).

    It is an ETL-Listed ethernet cable. It means that Cat6a Riser UTP ETL Listed ethernet network cable has undergone extensive testing for widely expected safety standards for the ethernet cables. It has also passed assed fluke link 295FT (90meter) testing based on ANSI/TIA 568C.2 CAT6A standards. This ETL listed Cat6a Riser 1000ft supports all Cat6a applications such as Ethernet 10 Gigabit, 100BASETX, 100BASEVG ANY LAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, and AES 51, RS-422.

    Cat6a Riser UTP ETL Listed cable runs 23AWG and supports data transfer rates of 10 Gbps over a distance of 100 meters. This cable has 750MHz bandwidth capacity that is way more than existing industry standards for this category of cable. The cable carries the following marking on its outer jackets: c(ETL)us 5006092 CMR 75C F/UTP 4PR 23AWG CAT6A.

    The inner structure consists of 8 pure copper conductors that are tightly bundled together in 4 twisted pairs. The biggest advantage of bare copper conductors is that they have way less attenuation as compared to CCA (copper-clad aluminum) conductors and perform exceptionally well even in harsh environments. Speaking of harsh environments, ETL listed Cat6a Riser 1000ft F/UTP cable comes with an extra layer of protection in the form of an aluminum foil shield wrapped around all four twisted pairs. This extra shield provides maximum protection against all types of crosstalk and prevents electromagnetic interference.

    You can also use ETL listed Cat6a Riser 1000ft cable for riser and outdoor installations. Being a bulk cable, it comes in an easy-to-pull wood spool. We offer free shipping across the USA on orders worth $249.99 and above.
