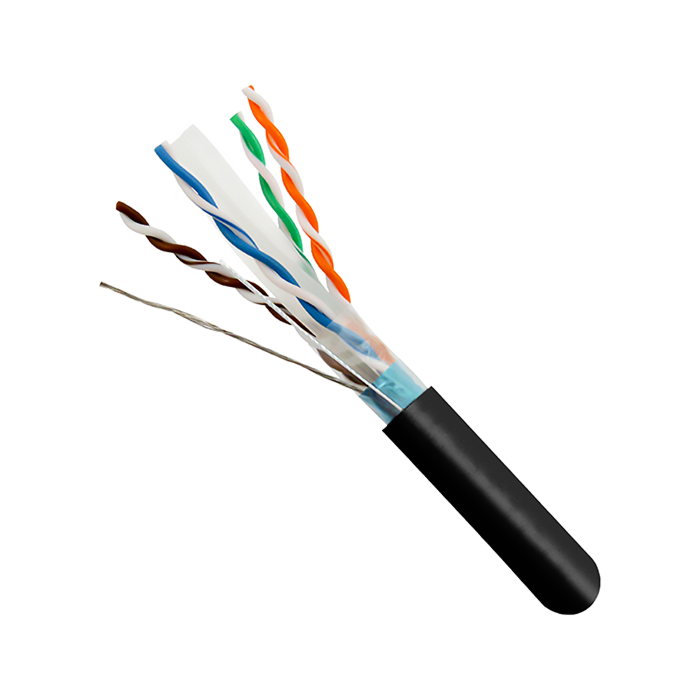

CAT6A Riser ETL Listed Shielded (F/UTP) 23AWG (CMR) 1000ft Spool
Designed for vertical installations, this Cat6a riser cable features a CMR-rated jacket and 23AWG solid bare copper conductors. It supports data speeds up to 10Gbps with 750MHz bandwidth. The F/UTP shielded 4-pair design helps reduce electromagnetic interference, making it suitable for enterprise networks and commercial installations requiring reliable high-speed data transmission.
In stock
- SKU
- NYC-V66x-ETL-FTP
- Material
- Riser Jacket, Copper Conductors
| Feature | Details |
|---|---|
| Material | Riser Jacket, Copper Conductors |
| General Type | F/UTP |
| Cable Category | Cat6a |
| Category Type | Ethernet Cables |
| Speed | 10 Gbps |
| Frequency | 750 MHz |
| Conductor Diameter | 23AWG |
| Jacket Rating | CMR (Riser) |
| Cable Length | 1000 feet |
| Conductor Material | 100% Pure Copper |
| Special Features | EMI-Reduction, Heat-Resistant, High-Speed, Tangle-Free, UV-Resistant |
| For Use | Vertical Installations |
| Connector Type | RJ45 |
| Packaging | Wooden Spool |
| Certifications | ETL, FCC, CE, ISO/IES, RoHS |
| PoE Compatibility | 802.3af/at/bt Type 4 |
| Twisted Pair Colors | Pair 1: Blue, White-Blue Pair 2: Orange, White-Orange Pair 3: Green, White-Green Pair 4: Brown, White-Brown |
| Shielding | F/UTP (Foil Shielded) |
ETL/UL Listed Shielded CAT6A Riser Cable
- Cat6a F/UTP shielded cable
- 23 AWG solid bare copper
- 750 MHz bandwidth support
- Foil shielding for EMI reduction
- Designed for enterprise networks
Fast 10G Data Transmission
- Supports 10 Gigabit Ethernet
- Handles high bandwidth demands
- Supports modern network upgrades
- Suitable for data center networks
- Provides reliable data transmission
Riser Rated for Vertical Runs
- CMR rated riser jacket
- Suitable for vertical installations
- Meets riser cable requirements
- Designed for multi floor runs
- Ideal for commercial installations
Certified Cat6A Riser Cable
- ETL Listed for quality assurance
- Verified for cable performance
- Supports professional installations
- Suitable for enterprise networks
- Built for certifications demanding projects
Foil Shielded Copper Design
- Solid bare copper conductors
- 23 AWG conductor size
- F/UTP foil shielding
- Four twisted copper pairs
- Supports reliable signal transmission
1000ft Spool for Larger Projects
- 1000ft cable length
- Convenient wooden spool
- Easy cable handling
- Supports controlled cable pulls
- Suitable for larger installations
Designed for Bandwidth Intensive Networks
This Cat6A riser shielded cable is designed for high speed 10 Gigabit Ethernet applications. Its 750 MHz bandwidth supports modern network requirements, while the solid bare copper conductors provide reliable signal transmission.
The F/UTP shield helps reduce electromagnetic interference in environments where network equipment may be exposed to electrical noise.
CMR Riser Rated Construction
The CMR rated jacket makes this cable suitable for vertical cable runs between floors and other riser applications. It is designed for commercial and enterprise installations where riser rated cable is required.
The shielded construction also makes it a practical choice for network environments where interference control is important.
Shielded Cable for Demanding Networks
With solid bare copper conductors and F/UTP foil shielding, this Cat6A cable provides dependable performance for demanding network installations. The four twisted pairs support high speed Ethernet applications, while the overall foil shield helps reduce electromagnetic interference.
Our Cat6a riser cable also supports PoE, PoE+, and PoE++ applications under IEEE 802.3af, 802.3at, and 802.3bt Type 4. This allows compatible network devices to receive both data and power through the Ethernet connection.
It is suitable for enterprise networks, data centers, security systems, industrial facilities, and commercial buildings.
Buy CAT6A Riser ETL Listed Shielded Cable
Choose this Cat6A riser cable for installations that require 10 Gigabit performance, solid copper conductors, F/UTP shielding, ETL listing and a CMR rated jacket. The 1000ft spool provides enough cable for larger network projects while making handling and installation more convenient.
Request a quote now or get in touch with us for more information.
