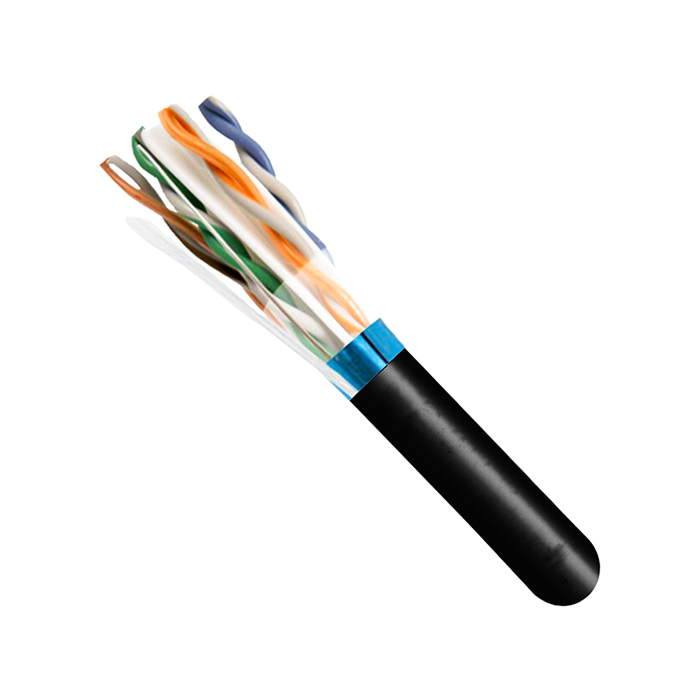

CAT6A Plenum ETL Listed Shielded F/UTP 23AWG CMP 1000ft Spool
Designed for air-handling spaces, this Cat6a plenum cable features a CMP-rated jacket and 23AWG solid bare copper conductors. It supports data speeds up to 10Gbps with 750MHz bandwidth. The F/UTP shielded 4-pair design helps reduce electromagnetic interference, making it suitable for enterprise networks and commercial installations requiring dependable high-speed data transmission.
In stock
- SKU
- NYC-V63x-ETL-FTP
- Material
- Plenum Jacket, Copper Conductors
| Feature | Details |
|---|---|
| Material | Plenum Jacket, Copper Conductors |
| General Type | F/UTP |
| Cable Category | Cat6a |
| Category Type | Ethernet Cables |
| Speed | 10 Gbps |
| Frequency | 750 MHz |
| Conductor Diameter | 23AWG |
| Jacket Rating | CMP (Plenum) |
| Cable Length | 1000 feet |
| Conductor Material | 100% Pure Copper |
| Special Features | EMI-Reduction, Heat-Resistant, High-Speed, Tangle-Free, UV-Resistant |
| For Use | Vertical Installations |
| Connector Type | RJ45 |
| Packaging | Wooden Spool |
| Certifications | ETL, FCC, CE, ISO/IES, RoHS |
| PoE Compatibility | 802.3af/at/bt Type 4 |
| Twisted Pair Colors | Pair 1: Blue, White-Blue Pair 2: Orange, White-Orange Pair 3: Green, White-Green Pair 4: Brown, White-Brown |
| Shielding | F/UTP (Foil Shielded) |
Enterprise Grade CAT6A Shielded Plenum Cable
- Cat6a F/UTP shielded cable
- 23 AWG solid bare copper
- 750 MHz bandwidth support
- Foil shielding for EMI reduction
- Designed for enterprise networks
High-Speed 10 Gigabit Performance
- Supports 10 Gigabit Ethernet
- Handles high bandwidth demands
- Supports modern network upgrades
- Suitable for data center networks
- Built for reliable data transmission
Certified CMP Plenum Safety
- CMP rated plenum jacket
- Suitable for air handling spaces
- Helps limit flame spread
- Helps reduce smoke emissions
- Ideal for commercial installations
ETL Listed Cable Quality
- ETL Listed for quality assurance
- Designed for Cat6A applications
- Supports professional installations
- Suitable for enterprise networks
- Built for certifications demanding projects
Shielded Pure Copper Construction
- Solid bare copper conductors
- 23 AWG conductor size
- F/UTP foil shielding
- Four twisted copper pairs
- Supports stable signal transmission
Easy 1000ft Spool Installation
- 1000ft cable length
- Convenient spool packaging
- Easy cable handling
- Supports controlled cable pulls
- Suitable for larger installations
Future-Ready 10G Performance
ThisCat6a plenum shielded cable is engineered to support high-speed 10 Gigabit Ethernet applications. With a 750 MHz rating, it provides additional bandwidth for modern networking needs. The F/UTP shielding helps reduce electromagnetic interference, while the solid bare copper conductors support consistent signal transmission.
This Cat6a shielded cable is suitable for data centers, enterprise networks, and other high-demand environments.
CMP Plenum Safety and Compliance
The Cat6a F/UTP CMP cable features a plenum-rated jacket designed for air-handling spaces such as drop ceilings and HVAC systems. It helps limit flame spread and smoke emissions during fire events.
Our Cat6a plenum ETL listed shielded cable is a suitable choice for commercial and institutional installations where fire safety requirements are important.
Superior Shielded Copper Performance
Built with 23 AWG solid bare copper conductors, this Cat6a shielded pure copper cable supports reliable signal transmission and consistent network performance. The F/UTP foil shield provides an additional layer of protection against electromagnetic interference.
Our Cat6a plenum cable supports PoE, PoE+, and PoE++ applications under IEEE 802.3af, 802.3at, and 802.3bt Type 4. This allows compatible network devices to receive both data and power through the Ethernet connection.
Unlike copper-clad aluminum (CCA), solid copper is a suitable choice for professional networking applications where conductivity and long-term reliability matter.
Buy CAT6A Plenum ETL-Listed Shielded Cable | NewYork Cables
Our Cat6a plenum shielded cable solutions are designed for performance, safety, and reliable installation. This 1000ft Cat6a F/UTP cable combines ETL listing, solid bare copper conductors, 750 MHz bandwidth, and a CMP-rated jacket for demanding commercial networks.
